美制布椎管外螺纹

Product Details

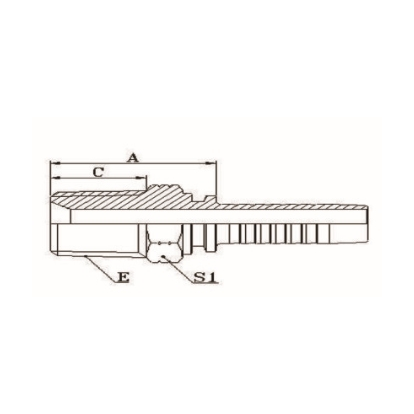

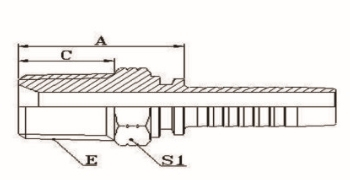

代号	螺纹E	软管		尺寸
代号	螺纹E	公称内径	标号	A	C	S1
15611-02-03	Z1/8”X27	5	03	21.5	10.5	12
15611-02-04	Z1/8”X27	6	04	22.5	10.5	12
15611-04-03	Z1/4”X18	5	03	27	15	17
15611-04-04	Z1/4”X18	6	04	27.5	15	17
15611-04-05	Z1/4”X18	8	05	27.5	15	17
15611-04-06	Z1/4”X18	10	06	27.5	15	17
15611-06-04	Z3/4”X18	6	04	29	16	19
15611-06-05	Z3/4”X18	8	05	29	16	19
15611-06-06	Z3/4”X18	10	06	29	16	19
15611-06-08	Z3/4”X18	12	08	29.5	16	19
15611-08-06	Z1/2”X14	10	06	33.5	19.5	22
15611-08-08	Z1/2”X14	12	08	34	19.5	22
15611-08-10	Z1/2”X14	16	10	35.5	19.5	22
15611-12-08	Z3/4”X14	12	08	37	19.5	27
15611-12-10	Z3/4”X14	16	10	37	19.5	27
15611-12-12	Z3/4”X14	20	12	38.5	19.5	27
15611-12-16	Z3/4”X14	25	16	39.5	19.5	32
15611-16-10	Z1”X11.5	16	10	45	25.5	36
15611-16-12	Z1”X11.5	20	12	45	25.5	36
15611-16-16	Z1”X11.5	25	16	47.5	25.5	36
15611-20-16	Z1.1/4”X11.5	25	16	49	26.5	46
15611-20-20	Z1.1/4”X11.5	32	20	50.5	26.5	46
15611-24-24	Z1.1/2”X11.5	40	24	53.5	27.5	50
15611-32-32	Z2”X11.5	50	32	56.5	27.5	65
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为15612-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 15612-XX-XX.
