Product Details
|
部件号 Part Number |

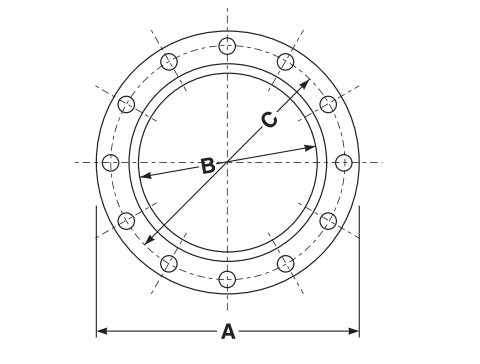

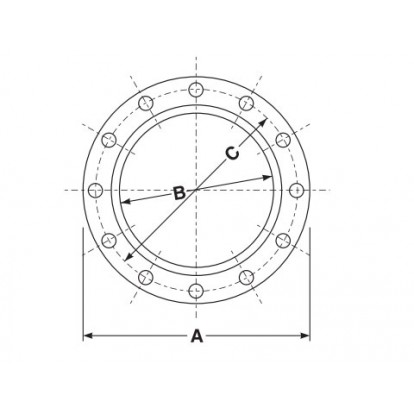

规格（英寸） Size (in.) | 外径A （英寸） OD A (in.) | Bore B | 圆环C （英寸） Circle C (in.) | 厚度 （英寸） Thickness (in.) | 螺栓孔数量 Number Bolt Holes | 螺栓孔直径 Diameter Bolt Holes (in.) | 单个重量 （公斤） Weight Each (KG) |
|---|---|---|---|---|---|---|---|---|
| SSPF3040100 | 1 | 4 1/4 |
1.360
|
3 1/8 | 1/2 | 4 | 5/8 | 0.75 |
| SSPF3040125 | 1 1/4 | 4 5/8 |
1.700
|
3 1/2 | 1/2 | 4 | 5/8 | 0.91 |
| SSPF3040150 | 1 1/2 | 5 |
1.950
|
3 7/8 | 1/2 | 4 | 5/8 | 1.02 |
| SSPF3040200 | 2 | 6 |
2.440
|
4 3/4 | 1/2 | 4 | 3/4 | 1.39 |
| SSPF3040250 | 2 1/2 | 7 |
2.940
|
5 1/2 | 1/2 | 4 | 3/4 | 1.98 |
| SSPF3040300 | 3 | 7 1/2 |
3.570
|
6 | 1/2 | 4 | 3/4 | 2.14 |
| SSPF3040400 | 4 | 9 |
4.570
|
7 1/2 | 1/2 | 8 | 3/4 | 2.88 |
| SSPF3040500 | 5 | 10 |
5.660
|
8 1/2 | 1/2 | 8 | 7/8 | 3.21 |
| SSPF3040600 | 6 | 11 |
6.720
|
9 1/2 | 1/2 | 8 | 7/8 | 3.47 |
| SSPF3040800 | 8 | 13 1/2 |
8.720
|
11 3/4 | 1/2 | 8 | 7/8 | 5.19 |
| SSPF3041000 | 10 | 16 |
10.880
|
14 1/4 | 1/2 | 12 | 1 | 6.06 |
| SSPF3041200 | 12 | 19 |
12.880
|
17 | 1/2 | 12 | 1 | 9.53 |
| SSPF3041400 | 14 | 21 |
14.140
|
18 3/4 | 1/2 | 12 | 11/8 | 12.62 |
Inquiry Now
Can't find the specific information you’re looking for? Have a question ? Contact Us
