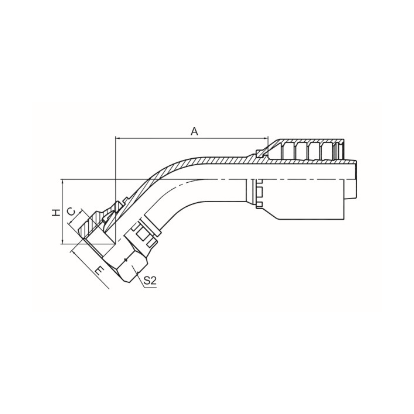

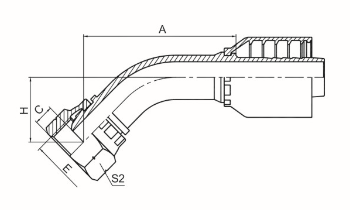

代  号 PART NO.		螺纹E	胶 管 HOSE BORE		尺寸 DIMENSIONS
编织 BRAIDED	缠绕 SPIRAL	THREADE	公称内径 DN	标号DASH	A	C	H	S2
22141-02-04RW	--	G1/8”X28	6	04	44.9	2	21.3	14
22141-04-04RW	--	G1/4”X19	6	04	44.9	4	21.3	19
22141-06-05RW	--	G3/8”X19	8	05	47.7	5	22.9	22
22141-06-06RW	--	G3/8”X19	10	06	48.8	5	23.6	22
22141-06-08RW	22142-06-08RW	G3/8”X19	12	08	62.2	5	25.8	22
22141-08-04TRW	--	G1/2”X14	6	04	45.2	6	21.6	27
22141-08-06TRW	--	G1/2”X14	10	06	48.4	6	23.2	27
22141-08-08RW	22142-08-08RW	G1/2”X14	12	08	63.6	6	27.2	27
22141-08-10RW	22142-08-10RW	G1/2”X14	16	10	73.8	6	28.5	27
22141-10-10RW	22142-10-10RW	G5/8”X14	16	10	74.1	8	28.8	30
22141-10-12RW	22142-10-12RW	G5/8”X14	20	12	77.4	8	31.6	30
22141-12-08TRW	22142-12-08TRW	G3/4”X14	12	08	62.2	9.5	25.8	32
22141-12-10TRW	22142-12-10TRW	G3/4”X14	16	10	72.4	9.5	27.1	32
22141-12-12RW	22142-12-12RW	G3/4”X14	20	12	78.1	9.5	32.3	32
22141-16-12TRW	22142-16-12TRW	G1”X11	20	12	75.7	11	29.9	41
22141-16-16RW	22142-16-16RW	G1”X11	25	16	91.4	11	35	41
22141-20-16TRW	22142-20-16TRW	G1.1/4”X11	25	16	90	11	33.6	50
22141-20-20WRW	22142-20-20RW	G1.1/4”X11	32	20	101	10	41.9	50
22141-24-24WRW	22142-20-21RW	G1.1/2”X11	40	24	121.7	11.5	49	55
22141-32-32WRW	22142-32-32RW	G2”X11	50	32	146.7	15	56.9	70
