Product Details

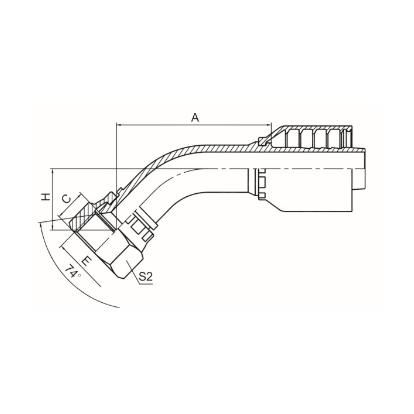

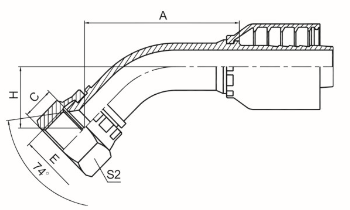

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | H | S2 |
| 20741-10-04RW | -- | M10X1 | 6 | 04 | 41.7 | 7.5 | 18.1 | 14 |
| 20741-12-04RW | -- | M12X1.5 | 6 | 04 | 41.7 | 10 | 18.1 | 17 |
| 20741-14-04TRW | -- | M14X1.5 | 6 | 04 | 40.6 | 8.5 | 17 | 19 |
| 20741-14-05RW | -- | M14X1.5 | 8 | 05 | 44.1 | 8.5 | 19.3 | 19 |
| 20741-14-06RW | -- | M14X1.5 | 10 | 06 | 45.2 | 8.5 | 20 | 19 |
| 20741-16-04TRW | -- | M16X1.5 | 6 | 04 | 41 | 8 | 17.4 | 22 |
| 20741-16-05TRW | -- | M16X1.5 | 8 | 05 | 43.1 | 8 | 18.3 | 22 |
| 20741-16-06RW | -- | M16X1.5 | 10 | 06 | 45.9 | 8 | 20.7 | 22 |
| 20741-18-05TRW | -- | M18X1.5 | 8 | 05 | 43.8 | 8 | 19 | 22 |
| 20741-18-06RW | -- | M18X1.5 | 10 | 06 | 46.6 | 10 | 21.4 | 24 |
| 20741-20-06TRW | -- | M20X1.5 | 10 | 06 | 45.2 | 10 | 20 | 24 |
| 20741-20-08RW | 20742-20-08RW | M20X1.5 | 12 | 08 | 60.4 | 10 | 24 | 27 |
| 20741-22-08TRW | 20742-22-08TRW | M22X1.5 | 12 | 08 | 57.9 | 10 | 21.5 | 27 |
| 20741-22-10RW | 20742-22-10RW | M22X1.5 | 16 | 10 | 70.6 | 10 | 25.3 | 27 |
| 20741-24-08TRW | 20742-24-08TRW | M24X1.5 | 12 | 08 | 57.9 | 11 | 21.5 | 30 |
| 20741-27-08TRW | 20742-27-08TRW | M27X1.5 | 12 | 08 | 59.3 | 11 | 22.9 | 32 |
| 20741-27-10TRW | 20742-27-10TRW | M27X1.5 | 16 | 10 | 69.5 | 11 | 24.2 | 32 |
| 20741-30-10TRW | 20742-30-10TRW | M30X1.5 | 16 | 10 | 69.9 | 11 | 24.6 | 36 |
| 20741-30-12TRW | 20742-30-12TRW | M30X1.5 | 20 | 12 | 73.2 | 13 | 27.4 | 36 |
| 20741-33-12TRW | 20742-33-12TRW | M33X2 | 20 | 12 | 72.8 | 13 | 27 | 41 |
| 20741-36-16TRW | 20742-36-16TRW | M36X2 | 25 | 16 | 85 | 14 | 28.6 | 41 |
| 20741-39-16TRW | 20742-39-16TRW | M39X2 | 25 | 16 | 87.2 | 14 | 30.8 | 46 |
| 20741-42-16TRW | 20742-42-16TRW | M42X2 | 25 | 16 | 86.5 | 15 | 30.1 | 50 |
| 20741-42-20WRW | 20742-42-20WRW | M42X2 | 32 | 20 | 97.8 | 15 | 38.7 | 50 |
| 20741-45-20TRW | 20742-45-20TRW | M45X2 | 32 | 20 | 96.1 | 15 | 34.2 | 55 |
| 20741-52-24TRW | 20742-52-24TRW | M52X2 | 40 | 24 | 110.8 | 17 | 38.1 | 60 |
