45°美制JIC内螺纹74°内锥面 SAE J514

Product Details

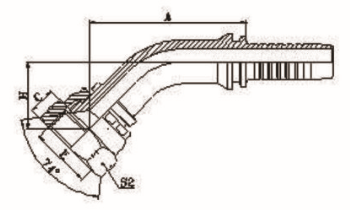

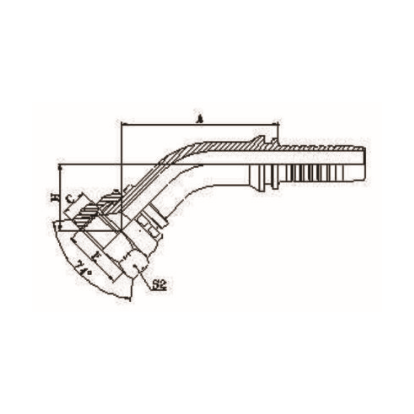

代号	螺纹E	软管		尺寸
代号	螺纹E	公称内径	标号	A	C	H	S2
26741-04-03	7/16”X20	5	03	37.6	9	17.2	15
26741-04-04	7/16”X20	6	04	37	9	18	15
26741-05-04	1/2”X20	6	04	40.5	9.5	18.5	17
26741-05-05	1/2”X20	8	05	41.5	9.5	20	17
26741-05-06	1/2”X20	10	06	44.6	9.5	20.3	17
26741-06-04	9/16”X18	6	04	40.5	10.5	18.5	19
26741-06-05	9/16”X18	8	05	42	10.5	20.5	19
26741-06-06	9/16”X18	10	06	44	10.5	20.5	19
26741-08-06	3/4”X16	10	06	45	11	21.5	24
26741-08-08	3/4”X16	12	08	56.5	11	24	24
26741-10-08	7/8”X14	12	08	57.5	13	24.6	27
26741-10-10	7/8”X14	16	10	60	13	26	27
26741-10-12	7/8”X14	20	12	75.7	13	28.9	27
26741-12-08	1.1/16”X12	12	08	58	15	25.5	32
26741-12-10	1.1/16”X12	16	10	60.5	15	27	32
26741-12-12	1.1/16”X12	20	12	73.5	15	30	32
26741-14-12	1.3/16”X12	20	12	77.4	15	30	36
26741-16-12	1.5/16”X12	20	12	77.4	16	30	41
26741-16-16	1.5/16”X12	25	16	84	16	32.5	41
26741-20-20W	1.5/8”X12	32	20	95.9	17	35.2	50
26741-24-20W	1.7/8”X12	32	20	100.9	20	40.1	55
26741-24-24W	1.7/8”X12	40	24	114.8	20	44.1	55
26741-32-32T	2.1/2”X12	50	32	135.9	23.5	51.6	75
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为26742-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 26742-XX-XX.
