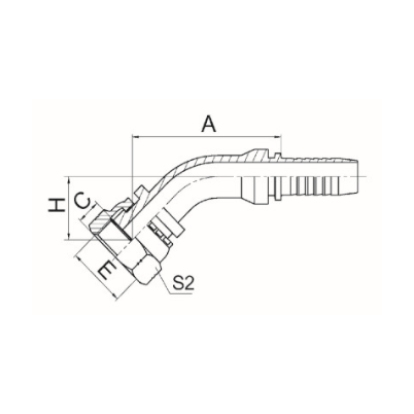

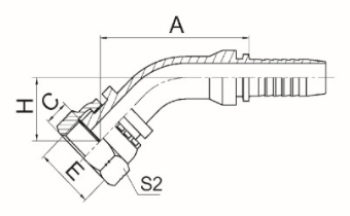

45°美制ORFS内螺纹平面 ISO 12151-1-SAE J516

Product Details

代号 PART NO.	螺纹E THREAD E	软管HOSE BORE		尺寸DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径 DN	标号DASH	A	H	C	S2
24241-04-04	9/16”X18	6	04	45.5	23.4	8.5	19
24241-04-05	9/16”X18	8	05	47.6	24.3	8.5	19
24241-04-06	9/16”X18	10	06	49.2	24.9	8.5	19
24241-06-04T	11/16”X16	6	04	39.5	17.4	10	22
24241-06-05T	11/16”X16	8	05	42.3	19	10	22
24241-06-06	11/16”X16	10	06	51.3	27.1	10	22
24241-08-06T	13/16”X16	10	06	44.6	20.3	11	27
24241-08-08	13/16”X16	12	08	65.7	30.7	11	27
24241-08-10	13/16”X16	16	10	76.5	31.7	11	27
24241-10-08T	1”X14	12	08	58.2	23.3	13.5	30
24241-10-10	1”X14	16	10	79.2	34.9	13.5	30
24241-12-08T	1.3/16”X12	12	08	58.2	23.3	15	36
24241-12-10T	1.3/16”X12	16	10	68.2	23.9	15	36
24241-12-12	1.3/16”X12	20	12	87	39.5	15	36
24241-12-16	1.3/16”X12	25	16	95.3	41	15	36
24241-16-12T	1.7/16”X12	20	12	74	29.6	14.8	41
24241-16-14T	1.7/16”X12	22	14	78.7	28.5	14.8	41
24241-16-16T	1.7/16”X12	25	16	84.1	29.7	14.8	41
24241-20-16T	1.11/16”X12	25	16	84.1	29.7	15	50
24241-20-20W	1.11/16”X12	32	20	111.2	49	15	50
24241-24-20T	2”X12	32	20	94.5	33.8	14.8	60
24241-24-24T	2”X12	40	24	108.5	37.7	14.8	60
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为24242-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 24242-XX-XX.
