45°SAE 法兰 3000PSI ISO 12151-3-SAE J516

Product Details

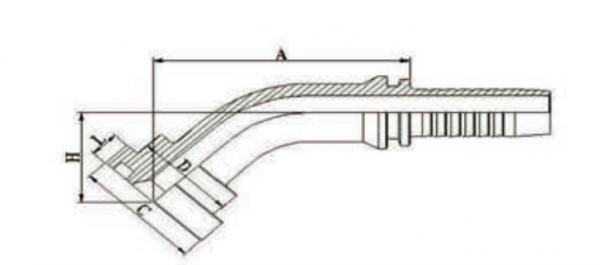

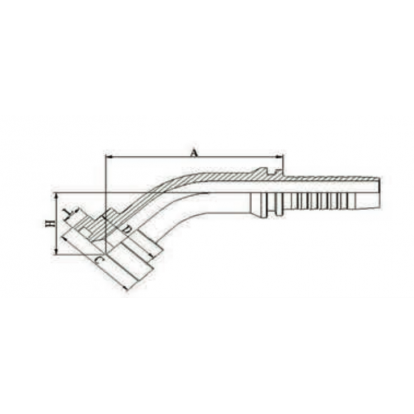

代号	法兰型号	软管		尺寸
代号	法兰型号	公称内径	标号	A	C	D	H	L
87342-08-08	1/2”	12	08	56.5	30.2	24	23.5	6.73
87342-12-08	3/4”	12	08	58.9	38.1	31.7	24	6.73
87342-12-10	3/4”	16	10	69.9	38.1	31.7	25.3	6.73
87342-12-12	3/4”	20	12	73.5	38.1	31.7	29.5	6.73
87342-16-12	1”	20	12	76.3	44.4	38	28.9	8
87342-16-16	1”	25	16	83	44.4	38	31	8
87342-16-20	1”	32	20	94.5	44.4	38	33.8	8
87342-20-16	1.1/4”	25	16	82	50.8	43	30.5	8
87342-20-20	1.1/4”	32	20	95	50.8	43	36	8
87342-24-20	1.1/2”	32	20	95.9	60.3	50	35.2	8
87342-24-24	1.1/2”	40	24	108	60.3	50	42	8
87342-32-24	2”	40	24	109.9	71.4	62	39.1	9.53
87342-32-32	2”	50	32	129.3	71.4	62	43	9.53
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为87342-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87342-XX-XX.
