Product Details

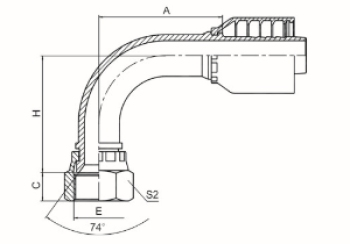

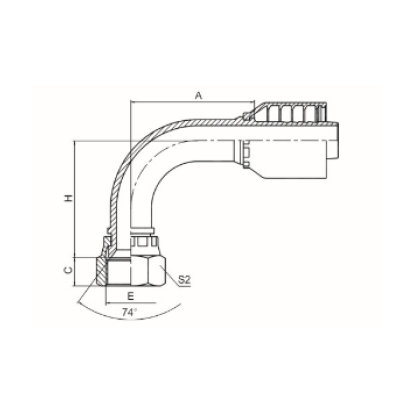

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | A | C | H | S2 |
| 20791-10-04RW | -- | M10X1 | 6 | 04 | 31.5 | 7.5 | 33.5 | 14 |
| 20791-12-04RW | -- | M12X1.5 | 6 | 04 | 31.5 | 10 | 33.5 | 17 |
| 20791-14-04TRW | -- | M14X1.5 | 6 | 04 | 31.5 | 8.5 | 32 | 19 |
| 20791-14-05RW | -- | M14X1.5 | 8 | 05 | 34.5 | 8.5 | 37 | 19 |
| 20791-14-06RW | -- | M14X1.5 | 10 | 06 | 36.3 | 8.5 | 39.3 | 19 |
| 20791-16-04TRW | -- | M16X1.5 | 6 | 04 | 31.5 | 8 | 32.5 | 22 |
| 20791-16-05TRW | -- | M16X1.5 | 8 | 05 | 34.5 | 8 | 35.5 | 22 |
| 20791-16-06RW | -- | M16X1.5 | 10 | 06 | 36.3 | 8 | 40.3 | 22 |
| 20791-18-05TRW | -- | M18X1.5 | 8 | 05 | 34.5 | 8 | 36.5 | 22 |
| 20791-18-06RW | -- | M18X1.5 | 10 | 06 | 36.3 | 10 | 41.3 | 24 |
| 20791-20-06TRW | -- | M20X1.5 | 10 | 06 | 36.3 | 10 | 39.3 | 24 |
| 20791-20-08RW | 20792-20-08RW | M20X1.5 | 12 | 08 | 42.5 | 10 | 48 | 27 |
| 20791-22-08TRW | 20792-22-08TRW | M22X1.5 | 12 | 08 | 42.5 | 10 | 44.5 | 27 |
| 20791-22-10RW | 20792-22-10RW | M22X1.5 | 16 | 10 | 57 | 10 | 52.5 | 27 |
| 20791-24-08TRW | 20792-24-08TRW | M24X1.5 | 12 | 08 | 42.5 | 11 | 44.5 | 30 |
| 20791-27-08TRW | 20792-27-08TRW | M27X1.5 | 12 | 08 | 42.5 | 11 | 46.5 | 32 |
| 20791-27-10TRW | 20792-27-10TRW | M27X1.5 | 16 | 10 | 57 | 11 | 51 | 32 |
| 20791-30-10TRW | 20792-30-10TRW | M30X1.5 | 16 | 10 | 57 | 11 | 51.5 | 36 |
| 20791-30-12TRW | 20792-30-12TRW | M30X1.5 | 20 | 12 | 63.2 | 13 | 58 | 36 |
| 20791-33-12TRW | 20792-33-12TRW | M33X2 | 20 | 12 | 63.2 | 13 | 57.5 | 41 |
| 20791-36-16TRW | 20792-36-16TRW | M36X2 | 25 | 16 | 78.9 | 14 | 66 | 41 |
| 20791-39-16TRW | 20792-39-16TRW | M39X2 | 25 | 16 | 78.9 | 14 | 69 | 46 |
| 20791-42-16TRW | 20792-42-16TRW | M42X2 | 25 | 16 | 78.9 | 15 | 68 | 50 |
| 20791-42-20WRW | 20792-42-20WRW | M42X2 | 32 | 20 | 92.7 | 15 | 85.5 | 50 |
| 20791-45-20TRW | 20792-45-20TRW | M45X2 | 32 | 20 | 92.7 | 15 | 79 | 55 |
| 20791-52-24TRW | 20792-52-24TRW | M52X2 | 40 | 24 | 111.4 | 17 | 92.5 | 60 |
