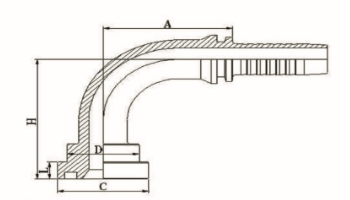

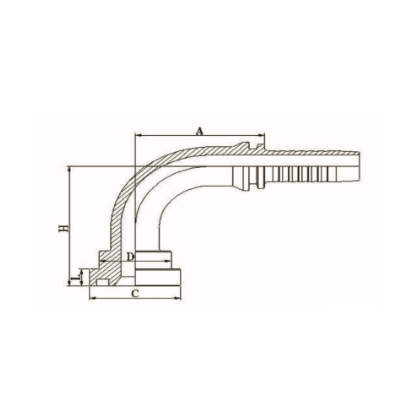

90° SAE 法兰 3000PSI ISO 12151-3-SAE J516

Product Details

代号	法兰型号	软管		尺寸
代号	法兰型号	公称内径	标号	A	C	D	H	L
87392-08-08	1/2”	12	08	42.5	30.2	24	48	6.73
87392-12-08	3/4”	12	08	42.5	38.1	31.7	50	6.73
87392-12-10	3/4”	16	10	56	38.1	31.7	52.5	6.73
87392-12-12	3/4”	20	12	60.5	38.1	31.7	62.5	6.73
87392-12-16	3/4”	25	16	76.7	38.1	31.7	67.5	6.73
87392-16-12	1”	20	12	65.5	44.4	38	62	8
87392-16-16	1”	25	16	66	44.4	38	74	8
87392-16-20	1”	32	20	91.5	44.4	38	78.5	8
87392-20-16	1.1/4”	25	16	76.7	50.8	43	67.5	8
87392-20-20	1.1/4”	32	20	75	50.8	43	86	8
87392-20-24	1.1/4”	40	24	107	50.8	43	78.5	8
87392-24-20	1.1/2”	32	20	75	60.3	50	90	8
87392-24-24	1.1/2”	40	24	89	60.3	50	102	8
87392-32-24	2”	40	24	109.4	71.4	62	94	9.53
87392-32-32	2”	50	32	115.5	71.4	62	129.5	9.53
87392-40-40	2.1/2”	64	40	131.8	84.1	74.4	116.3	9.53
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为87392-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87392-XX-XX.
