90° SAE 法兰 6000PSI ISO 12151-3-SAE J516

Product Details

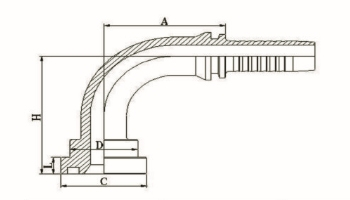

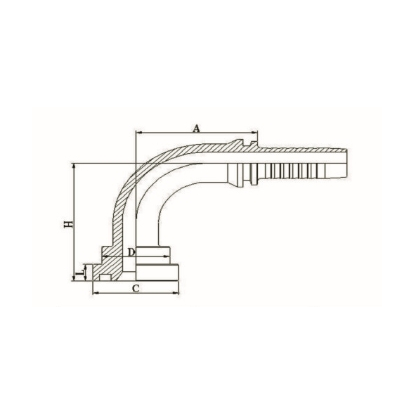

代号	法兰型号	软管		尺寸
代号	法兰型号	公称内径	标号	A	C	D	H	L
87692-08-08	1/2”	12	08	42.5	31.7	24	25	7.75
87692-12-10	3/4”	16	10	56	41.3	32	56.5	8.76
87692-12-12	3/4”	20	12	50.5	41.3	32	65.5	8.76
87692-16-12	1”	20	12	65.5	47.6	38	69	9.53
87692-16-16	1”	25	16	66	47.6	38	78	9.53
87692-16-20	1”	32	20	91.5	47.6	38	85.5	9.53
87692-20-16	1.1/4”	25	16	76.7	54	44	78.5	10.29
87692-20-20	1.1/4”	32	20	75	54	44	92	10.29
87692-24-20	1.1/2”	32	20	91.5	63.5	51	94.5	12.57
87692-24-24	1.1/2”	40	24	89	63.5	51	107	12.57
87692-32-24	2”	40	24	109.4	79.4	67	116	12.57
87692-32-32	2”	50	32	115.5	79.4	67	138.5	12.57
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为87692-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87692-XX-XX.
