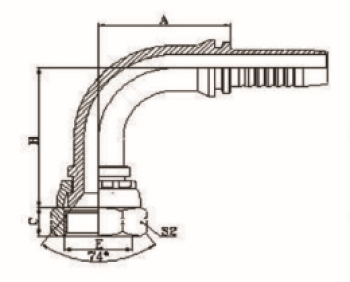

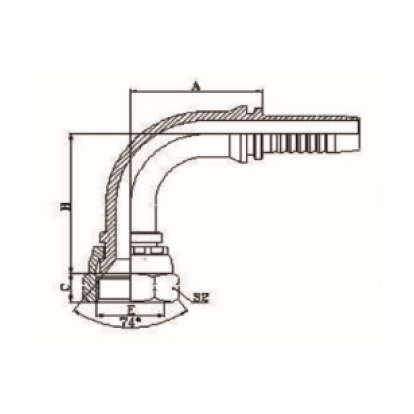

90°美制JIC内螺纹74°内锥面 SAE J514

Product Details

代号	螺纹E	软管		尺寸
代号	螺纹E	公称内径	标号	A	C	H	S2
26791-04-03	7/16”X20	5	03	26.5	9	30.5	15
26791-04-04	7/16”X20	6	04	27.5	9	33	15
26791-05-04	1/2”X20	6	04	27.5	9.5	33.5	17
26791-05-05	1/2”X20	8	05	31	9.5	38.5	17
26791-05-06	1/2”X20	10	06	35.3	9.5	39.3	17
26791-06-04	9/16”X18	6	04	27.5	10.5	34.5	19
26791-06-05	9/16”X18	8	05	31	10.5	39	19
26791-06-06	9/16”X18	10	06	33	10.5	40	19
26791-06-08	9/16”X18	12	08	35.8	10.5	39.8	19
26791-08-06	3/4”X16	10	06	33	11	41.5	24
26791-08-08	3/4”X16	12	08	42.5	11	48.5	24
26791-08-10	3/4”X16	16	10	49	11	47.5	24
26791-10-08	7/8”X14	12	08	42.5	13	49.5	27
26791-10-10	7/8”X14	16	10	48.5	13	54	27
26791-10-12	7/8”X14	20	12	50.5	13	62	27
26791-12-08	1.1/16”X12	12	08	42.5	15	50.5	32
26791-12-10	1.1/16”X12	16	10	48.5	15	55	32
26791-12-12	1.1/16”X12	20	12	60.5	15	63	32
26791-12-16	1.1/16”X12	25	16	74	15	63.5	32
26791-14-12	1.3/16”X12	20	12	65.5	15	63.5	36
26791-16-12	1.5/16”X12	20	12	65.5	16	63.5	41
26791-16-16	1.5/16”X12	25	16	66	16	75.5	41
26791-20-20W	1.5/8”X12	32	20	91.5	17	80.5	50
26791-24-20W	1.7/8”X12	32	20	91.5	20	80.5	55
26791-24-24W	1.7/8”X12	40	24	109.4	20	94	55
26791-32-32T	2.1/2”X12	50	32	133.1	23.5	121.8	75
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为26792-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 26792-XX-XX.
