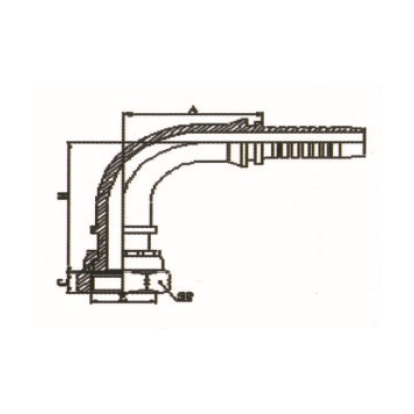

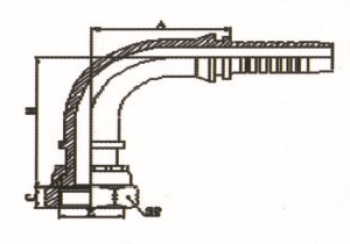

90°ORFS内螺纹平面 ISO 12151-1-SAE J516

Product Details

代号	螺纹E	软管		尺寸
代号	螺纹E	公称内径	标号	A	H	C	S2
24291-04-04	9/16”X18	6	04	27.5	43.5	8.5	19
24291-04-05	9/16”X18	8	05	33	44	8.5	19
24291-06-05T	11/16”X16	8	05	33	37.5	10	22
24291-06-06	11/16”X16	10	06	33	50	10	22
24291-08-08	11/16”X16	12	08	42.5	55	10	22
24291-08-06T	13/16”X16	10	06	35.3	39.8	11	27
24291-08-08	13/16”X16	12	08	41	58	11	27
24291-08-10	13/16”X16	16	10	56.5	61.5	11	27
24291-10-08T	1”X14	12	08	41	46	13.5	30
24291-10-10	1”X14	16	10	48.5	67.5	13.5	30
24291-10-12	1”X14	20	12	50.5	75.5	13.5	30
24291-12-10T	1.3/16”X12	16	10	56	51.5	15	36
24291-12-12	1.3/16”X12	20	12	65.5	78	15	36
24291-12-16	1.3/16”X12	25	16	76.7	83.5	15	36
24291-16-12T	1.7/16”X12	20	12	65.5	63	14.8	41
24291-16-14T	1.7/16”X12	22	14	71.2	63	14.8	41
24291-16-16T	1.7/16”X12	25	16	76.9	67.5	14.8	41
24291-20-16T	1.11/16”X12	25	16	76.7	67.5	15	50
24291-20-20W	1.11/16”X12	32	20	93	100	15	50
24291-24-20T	2”X12	32	20	91.5	78.5	14.8	60
24291-24-24T	2”X12	40	24	109.4	92	14.8	60

注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为24292-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 24292-XX-XX.
