BOP control hose
Application: hydraulic control line for remotely control the blowout preventer(BOP) at high pressure.

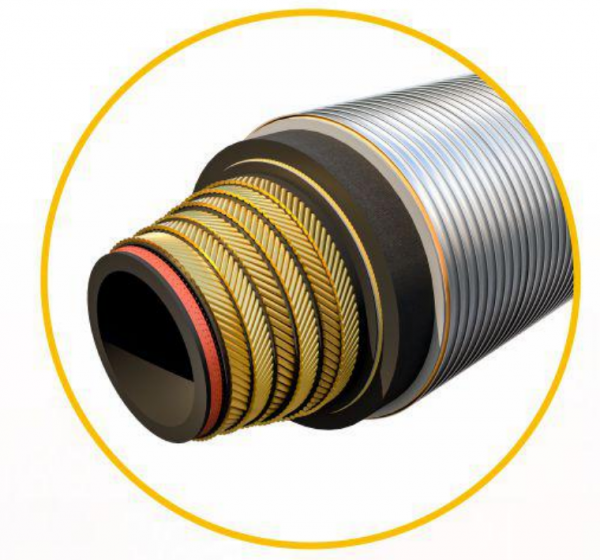

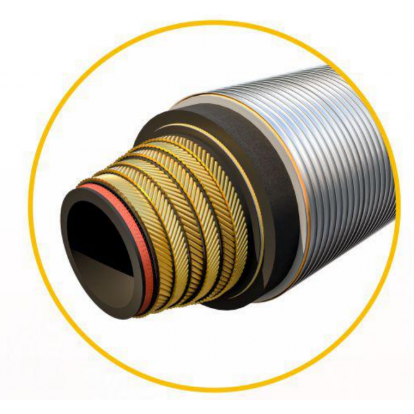

Hose Construction
Inner Tube: NBR
Bore Type: full flow
Reinforcement: 4 layers of high tensile super flexible spiral steel wire
Outer Layer: high temperature and fire resistant synthetic rubber
Protective Layer: stainless steel armor
Temperature Range: -45℃~+100℃(-49F~+212F)
Fire resistance meets API Spec. 16D, 704Cx5min
|
软管内径 I.D. |
工作压力 W.P. |
试验压力 P.P. |
最小爆破压力 Min B.P. |
最小弯曲半径 Min. B.R. |
|
in |
Psi |
Psi |
Psi |
mm |
|
1/2 |
5000 |
7500 |
15000 |
300 |
|
3/4 |
5000 |
7500 |
15000 |
400 |
|
1 |
5000 |
7500 |
15000 |
500 |
|
1 1/2 |
5000 |
7500 |
15000 |
700 |
|
2 |
5000 |
7500 |
15000 |
800 |
