Product Details

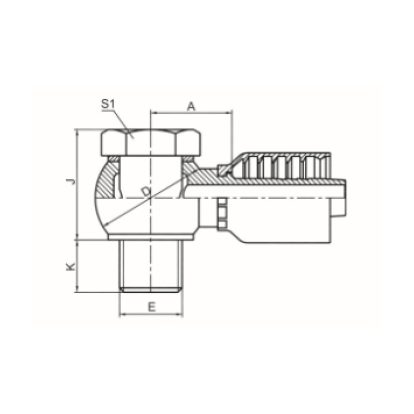

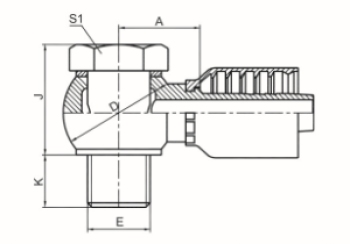

| 代 号 PART NO. | 螺纹E | 胶 管 HOSE BORE | 组合垫 | 尺寸 DIMENSIONS | ||||||
| 编织 BRAIDED | 缠绕 SPIRAL | THREADE | 公称内径 DN | 标号DASH | BONDED | A | D | J | K | S1 |
| 72011-02-04RW | -- | G1/8”X28 | 6 | 04 | ZHD-10 | 20 | 22 | 24.8 | 9.5 | 14 |
| 72011-04-04RW | -- | G1/4”X19 | 6 | 04 | ZHD-14 | 21 | 24 | 25 | 9.5 | 19 |
| 72011-04-05RW | -- | G1/4”X19 | 8 | 05 | ZHD-14 | 21 | 24 | 25 | 9.5 | 19 |
| 72011-04-06RW | -- | G1/4”X19 | 10 | 06 | ZHD-14 | 20.5 | 24 | 25 | 9.5 | 19 |
| 72011-06-04RW | -- | G3/8”X19 | 6 | 04 | ZHD-18 | 23.5 | 29 | 31 | 14.5 | 22 |
| 72011-06-05RW | -- | G3/8”X19 | 8 | 05 | ZHD-18 | 23.5 | 29 | 31 | 14.5 | 22 |
| 72011-06-06RW | -- | G3/8”X19 | 10 | 06 | ZHD-18 | 23 | 29 | 31 | 14.5 | 22 |
| 72011-06-08RW | 72012-06-08RW | G3/8”X19 | 12 | 08 | ZHD-18 | 23.5 | 29 | 31 | 14.5 | 22 |
| 72011-08-05RW | -- | G1/2”X14 | 8 | 05 | ZHD-22 | 29 | 38 | 37.5 | 15 | 27 |
| 72011-08-06RW | -- | G1/2”X14 | 10 | 06 | ZHD-22 | 28.5 | 38 | 37.5 | 15 | 27 |
| 72011-08-08RW | 72012-08-08RW | G1/2”X14 | 12 | 08 | ZHD-22 | 28.5 | 38 | 37.5 | 15 | 27 |
| 72011-08-10RW | 72012-08-10RW | G1/2”X14 | 16 | 10 | ZHD-22 | 30.5 | 38 | 37.5 | 15 | 27 |
| 72011-10-10RW | 72012-10-10RW | G5/8”X14 | 16 | 10 | ZHD-G10 | 29.5 | 40 | 41 | 17.5 | 30 |
| 72011-12-10RW | 72012-12-10RW | G3/4”X14 | 16 | 10 | ZGD-27 | 33.5 | 48 | 45 | 21 | 32 |
| 72011-12-12RW | 72012-12-12RW | G3/4”X14 | 20 | 12 | ZHD-27 | 32 | 48 | 45 | 21 | 32 |
| 72011-16-08RW | 72012-16-08RW | G1”X11 | 12 | 08 | ZHD-33 | 40.5 | 60 | 59 | 22.5 | 41 |
| 72011-16-12RW | 72012-16-12RW | G1”X11 | 20 | 12 | ZHD-33 | 40 | 60 | 59 | 22.5 | 41 |
| 72011-16-16RW | 72012-16-16RW | G1”X11 | 25 | 16 | ZHD-33 | 43.2 | 60 | 59 | 22.5 | 41 |
