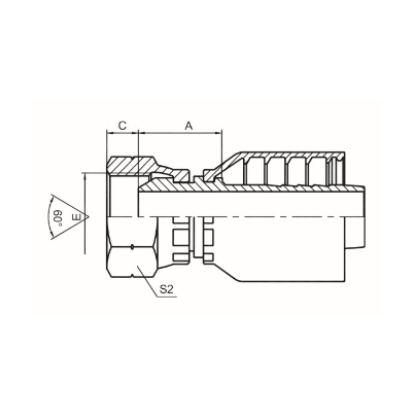

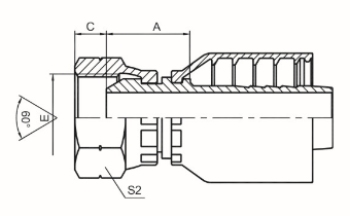

代  号 PART NO.		螺纹E	胶 管 HOSE BORE		尺寸 DIMENSIONS
编织 BRAIDED	缠绕 SPIRAL	THREADE	公称内径 DN	标号DASH	A	C	S1
22611-04-04RW	--	G1/4”X19	6	04	19.5	5.5	19
22611-04-05RW	--	G1/4”X19	8	05	19.5	5.5	19
22611-04-06RW	--	G1/4”X19	10	06	19.5	5.5	19
22611-06-04TRW	--	G3/8”X19	6	04	18.2	6.3	22
22611-06-05TRW	--	G3/8”X19	8	05	18.2	6.3	22
22611-06-06RW	--	G3/8”X19	10	06	20.7	6.3	22
22611-06-08RW	--	G3/8”X19	12	08	21.7	6.3	22
22611-08-06TRW	--	G1/2”X14	10	06	19.5	7.5	27
22611-08-08RW	22612-08-08RW	G1/2”X14	12	08	23.5	7.5	27
22611-10-08TRW	22612-10-08TRW	G5/8”X14	12	08	21	9.5	30
22611-10-10RW	22612-10-10RW	G5/8”X14	10	10	24.5	9.5	30
22611-12-08TRW	22612-12-08TRW	G3/4”X14	12	08	21.6	10.9	32
22611-12-10TRW	22612-12-10TRW	G3/4”X14	16	10	22.1	10.9	32
22611-12-12RW	22612-12-12RW	G3/4”X14	20	12	24.6	10.9	32
22611-16-12TRW	22612-16-12TRW	G1”X11	20	12	22.3	11.7	41
22611-16-16RW	22612-16-16RW	G1”X11	25	16	29	11.7	41
22611-20-16TRW	22612-20-16TRW	G1.1/4”X11	25	16	26.8	11	50
22611-20-20WRW	22612-20-20WRW	G1.1/4”X11	32	20	29.7	11	50
22611-24-20TRW	22612-24-20TRW	G1.1/2”X11	32	20	28.8	13	55
22611-24-24WRW	22612-24-24WRW	G1.1/2”X11	40	24	34.5	13	55
22611-32-24TRW	22612-32-24TRW	G2”X11	40	24	32.5	16	70
22611-32-32WRW	22612-32-32WRW	G2”X11	50	32	38	16	70
