BSPT MALE

BSP MALE O-RING O-RING

Product Details

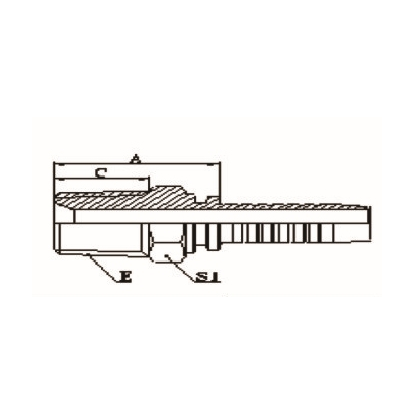

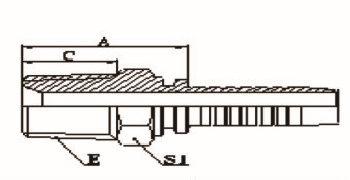

代号	螺纹E	软管		尺寸
代号	螺纹E	公称内径	标号	A	C	S1
13011-02-03SP	R1/8”X28	5	03	22	10	12
13011-02-04SP	R1/8”X28	6	04	22.5	10	12
13011-04-04SP	R1/4”X19	6	04	27	14.5	14
13011-04-05SP	R1/4”X19	8	05	25	15.4	14
13011-04-06SP	R1/4”X19	10	06	27	14.5	17
13011-06-04SP	R3/8”X19	6	04	27.5	15	17
13011-06-05SP	R3/8”X19	8	05	26.5	15	17
13011-06-06SP	R3/8”X19	10	06	27.5	15	17
13011-06-08SP	R3/8”X19	12	08	30	15	19
13011-08-06SP	R1/2”X14	10	06	34.5	20	22
13011-08-08SP	R1/2”X14	12	08	35	20	22
13011-08-10SP	R1/2”X14	16	10	38	20	22
13011-08-12SP	R1/2”X14	20	12	38	20	27
13011-12-08SP	R3/4”X14	12	08	37	20	27
13011-12-10SP	R3/4”X14	16	10	38	20	27
13011-12-12SP	R3/4”X14	20	12	38.5	20	27
13011-12-16SP	R3/4”X14	25	16	39.5	20	32
13011-16-12SP	R1”X11	20	12	44	25.5	36
13011-16-16SP	R1”X11	25	16	45	25.5	36
13011-20-20SP	R1.1/4”X11	32	20	49.5	26.5	46
13011-24-24SP	R1.1/2”X11	40	24	52.5	26.5	50
13011-32-24SP	R2”X11	40	24	57	30	65
13011-32-32SP	R2”X11	50	32	59	30	65
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为13012-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 13012-XX-XX.
