Product Details
|
部件号 Part Number |

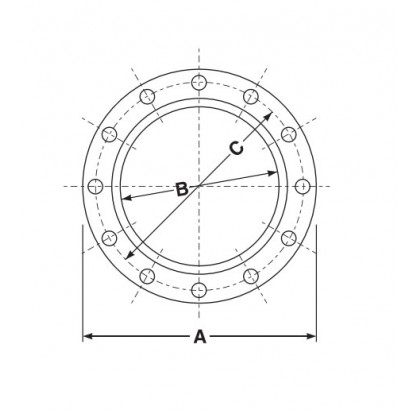

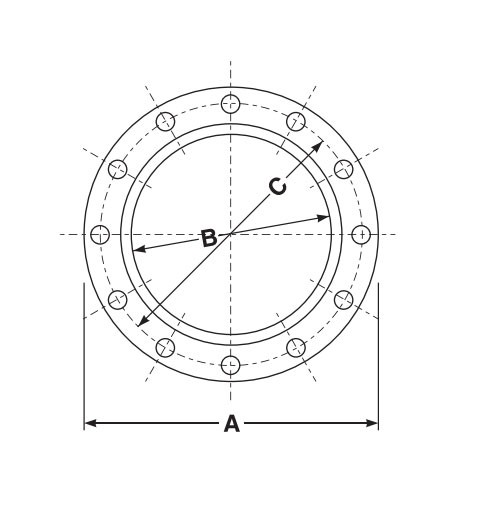

规格（英寸） Size (in.) | 外径A （英寸） OD A (in.) | Bore B | 圆环C （英寸） Circle C (in.) | 厚度 （英寸） Thickness (in.) | 螺栓孔数量 Number Bolt Holes | 螺栓孔直径 Diameter Bolt Holes (in.) | 单个重量 （公斤） Weight Each (KG) |
|---|---|---|---|---|---|---|---|---|
| CSRF1500050 | 1/2 | 3 1/2 |
0.875
|
2 3/8 | 5/8 | 4 | 5/8 | 0.50 |
| CSRF1500075 | 3/4 | 3 7/8 |
1.100
|
2 3/4 | 5/8 | 4 | 5/8 | 0.90 |
| CSRF1500100 | 1 | 4 1/4 |
1.360
|
3 1/8 | 3/4 | 4 | 5/8 | 0.99 |
| CSRF1500125 | 1 1/4 | 4 5/8 |
1.700
|
3 1/2 | 7/8 | 4 | 5/8 | 1.40 |
| CSRF1500150 | 1 1/2 | 5 |
1.950
|
3 7/8 | 7/8 | 4 | 5/8 | 1.63 |
| CSRF1500200 | 2 | 6 |
2.440
|
4 3/4 | 1 | 4 | 3/4 | 2.30 |
| CSRF1500250 | 2 1/2 | 7 |
2.940
|
5 1/2 | 1 1/8 | 4 | 3/4 | 3.20 |
| CSRF1500300 | 3 | 7 1/2 |
3.570
|
6 | 1 1/4 | 4 | 3/4 | 3.60 |
| CSRF1500400 | 4 | 9 |
4.570
|
7 1/2 | 1 3/8 | 8 | 3/4 | 5.90 |
| CSRF1500500 | 5 | 10 |
5.660
|
8 1/2 | 1 3/8 | 8 | 7/8 | 6.80 |
| CSRF1500600 | 6 | 11 |
6.720
|
9 1/2 | 1 1/2 | 8 | 7/8 | 8.50 |
| CSRF1500800 | 8 | 13 1/2 |
8.720
|
11 3/4 | 1 3/4 | 8 | 7/8 | 13.60 |
| CSRF1501000 | 10 | 16 |
10.880
|
14 1/4 | 2 | 12 | 1 | 19.50 |
| CSRF1501200 | 12 | 19 |
12.880
|
17 | 2 1/8 | 12 | 1 | 29.00 |
| CSRF1501400 | 14 | 21 |
14.140
|
18 3/4 | 2 1/4 | 12 | 1 1/8 | 41.00 |
|
部件号 Part Number |
规格（英寸） Size (in.) | 外径A （英寸） OD A (in.) | Bore B | 圆环C （英寸） Circle C (in.) | 厚度 （英寸） Thickness (in.) | 螺栓孔数量 Number Bolt Holes | 螺栓孔直径 Diameter Bolt Holes (in.) | 单个重量 （公斤） Weight Each (KG) |
|---|---|---|---|---|---|---|---|---|
| CSRF3000050 | 1/2 | 3 3/4 |
0.875
|
2 5/8 | 7/8 | 4 | 5/8 | 0.87 |
| CSRF3000075 | 3/4 | 4 5/8 |
1.100
|
3 1/4 | 1 | 4 | 3/4 | 1.15 |
| CSRF3000100 | 1 | 4 7/8 |
1.360
|
3 1/2 | 1 1/16 | 4 | 3/4 | 1.40 |
| CSRF3000125 | 1 1/4 | 5 1/4 |
1.700
|
3 7/8 | 1 1/16 | 4 | 3/4 | 1.61 |
| CSRF3000150 | 1 1/2 | 6 1/8 |
1.950
|
4 1/2 | 1 3/16 | 4 | 7/8 | 2.27 |
| CSRF3000200 | 2 | 6 1/2 |
2.440
|
5 | 1 5/16 | 8 | 3/4 | 3.20 |
| CSRF3000250 | 2 1/2 | 7 1/2 |
2.940
|
5 7/8 | 1 1/2 | 8 | 7/8 | 4.50 |
| CSRF3000300 | 3 | 8 1/4 |
3.570
|
6 5/8 | 1 11/16 | 8 | 7/8 | 5.90 |
| CSRF3000400 | 4 | 10 |
4.570
|
7 7/8 | 1 7/8 | 8 | 7/8 | 10.00 |
| CSRF3000500 | 5 | 11 |
5.660
|
9 1/4 | 2 | 8 | 7/8 | 12.70 |
| CSRF3000600 | 6 | 12 1/2 |
6.720
|
10 5/8 | 1 1/16 | 12 | 7/8 | 17.70 |
| CSRF3000800 | 8 | 15 |
8.720
|
13 | 2 7/16 | 12 | 1 | 26.30 |
