Product Details
|
部件号 Part Number |

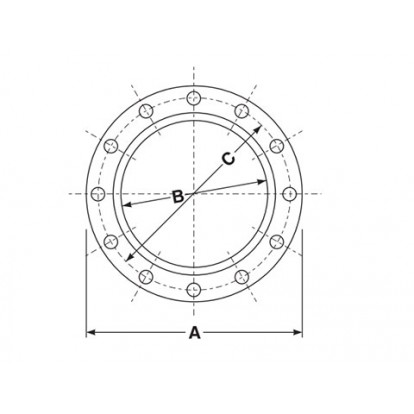

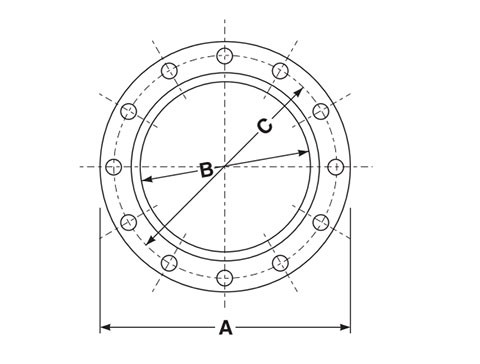

规格（英寸） Size (in.) | 外径A （英寸） OD A (in.) | Bore B | 圆环C （英寸） Circle C (in.) | 厚度 （英寸） Thickness (in.) | 螺栓孔数量 Number Bolt Holes | 螺栓孔直径 Diameter Bolt Holes (in.) | 单个重量 （公斤） Weight Each (KG) |
|---|---|---|---|---|---|---|---|---|
| CSPF0050 | 1/2 | 3 1/2 |
0.875
|
23/8 | 1/2 | 4 | 5/8 | 0.51 |
| CSPF0075 | 3/4 | 3 7/8 |
1.100
|
23/4 | 1/2 | 4 | 5/8 | 0.62 |
| CSPF0100 | 1 | 4 1/4 |
1.360
|
31/8 | 1/2 | 4 | 5/8 | 0.72 |
| CSPF0125 | 1 1/4 | 4 5/8 |
1.700
|
31/2 | 1/2 | 4 | 5/8 | 0.88 |
| CSPF0150 | 1 1/2 | 5 |
1.950
|
37/8 | 5/8 | 4 | 5/8 | 1.22 |
| CSPF0200 | 2 | 6 |
2.440
|
43/4 | 5/8 | 4 | 3/4 | 1.86 |
| CSPF0250 | 2 1/2 | 7 |
2.940
|
51/2 | 5/8 | 4 | 3/4 | 2.43 |
| CSPF0300 | 3 | 7 1/2 |
3.570
|
6 | 5/8 | 4 | 3/4 | 2.63 |
| CSPF0400 | 4 | 9 |
4.570
|
71/2 | 5/8 | 8 | 3/4 | 3.63 |
| CSPF0500 | 5 | 10 |
5.660
|
81/2 | 3/4 | 8 | 7/8 | 4.70 |
| CSPF0600 | 6 | 11 |
6.720
|
91/2 | 3/4 | 8 | 7/8 | 5.33 |
| CSPF0800 | 8 | 13 1/2 |
8.720
|
113/4 | 1 | 8 | 7/8 | 10.20 |
| CSPF1000 | 10 | 16 |
10.880
|
141/4 | 1 | 12 | 1 | 12.17 |
| CSPF1200 | 12 | 19 |
12.880
|
17 | 1 | 12 | 1 | 19.19 |
| CSPF1400 | 14 | 21 |
14.140
|
183/4 | 1 | 12 | 11/8 | 23.81 |
| CSPF1600 | 16 | 231/2 |
16.160
|
211/4 | 11/4 | 16 | 11/8 | 29.03 |
| CSPF1800 | 18 | 251/8 |
18.150
|
23 | 11/4 | 16 | 11/4 | 32.66 |
