Carbon steel forged raised face threaded flange碳钢锻造凸面螺纹法兰

Product Details

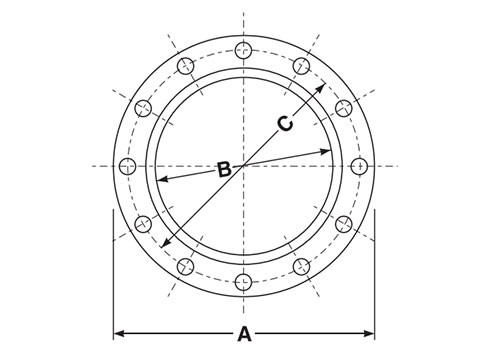

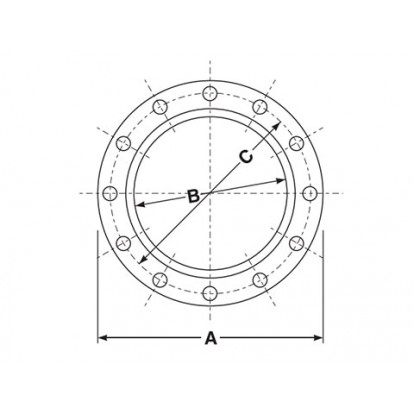

部件号 Part Number	规格（英寸） Size (in.)	外径A （英寸） OD A (in.)	Bore B	圆环C （英寸） Circle C (in.)	厚度（英寸） Thickness (in.)	螺栓孔数量 Number Bolt Holes	螺栓孔直径 Diameter Bolt Holes (in.)	单个重量（公斤） Weight Each (KG)
CSRFTHD1500050	1/2	3 1/2	0.875	2 3/8	5/8	4	5/8	0.50
CSRFTHD1500075	3/4	3 7/8	1.100	2 3/4	5/8	4	5/8	0.90
CSRFTHD1500100	1	4 1/4	1.360	3 1/8	3/4	4	5/8	0.99
CSRFTHD1500125	1 1/4	4 5/8	1.700	3 1/2	7/8	4	5/8	1.40
CSRFTHD1500150	1 1/2	5	1.950	3 7/8	7/8	4	5/8	1.63
CSRFTHD1500200	2	6	2.440	4 3/4	1	4	3/4	2.30
CSRFTHD1500250	2 1/2	7	2.940	5 1/2	1 1/8	4	3/4	3.20
CSRFTHD1500300	3	7 1/2	3.570	6	1 1/4	4	3/4	3.60
CSRFTHD1500400	4	9	4.570	7 1/2	1 3/8	8	3/4	5.90
CSRFTHD1500500	5	10	5.660	8 1/2	1 3/8	8	7/8	6.80
CSRFTHD1500600	6	11	6.720	9 1/2	1 1/2	8	7/8	8.50
CSRFTHD1500800	8	13 1/2	8.720	11 3/4	1 3/4	8	7/8	13.60
CSRFTHD1501000	10	16	10.880	14 1/4	2	12	1	19.50
CSRFTHD1501200	12	19	12.880	17	2 1/8	12	1	29.00
