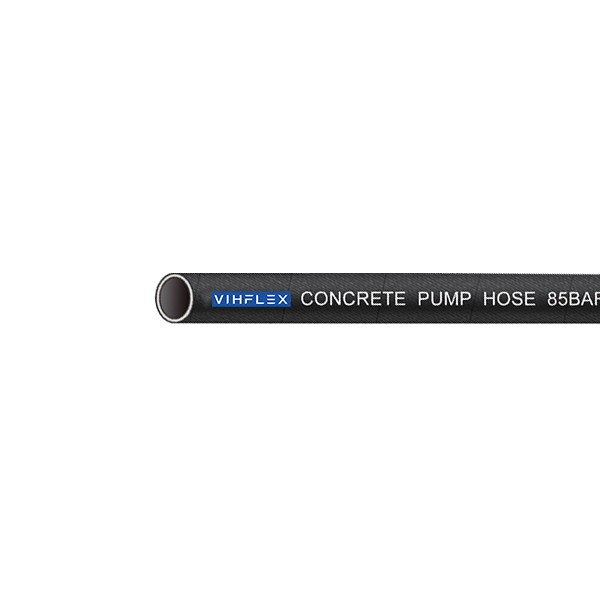

Concrete pump hose 85bar
Application
It is suitable for various types of concrete wet spraying machines, spraying machines, conveying pumps and pneumatic equipment for conveying cement and minerals.
Technical Parameters
Inner rubber: high wear-resistant NR synthetic rubber, black, smooth
Reinforcement layer: ID65mm, 2 layers of steel cord,
65mm<ID≤150mm, 4 layers of steel cord
Outer rubber: high wear resistance and aging resistance NR synthetic rubber, black, wrapped cover
Working temperature: -30℃ to +80℃
Advantage
A wear-resistant hose designed for operation under extreme conditions.
Outstanding high wear resistance prolongs the service life of the hose.
Good flexibility facilitates the user's operation.
Can withstand high-load operations and ensure maximum safety.
The tube body structure can prevent the kinking of the hose.
It is easy to clean and can withstand reverse negative pressure during cleaning.
It is suitable for various types of concrete wet spraying machines, spraying machines, conveying pumps and pneumatic equipment for conveying cement and minerals.
Technical Parameters
Inner rubber: high wear-resistant NR synthetic rubber, black, smooth
Reinforcement layer: ID65mm, 2 layers of steel cord,
65mm<ID≤150mm, 4 layers of steel cord
Outer rubber: high wear resistance and aging resistance NR synthetic rubber, black, wrapped cover
Working temperature: -30℃ to +80℃
Advantage
A wear-resistant hose designed for operation under extreme conditions.
Outstanding high wear resistance prolongs the service life of the hose.
Good flexibility facilitates the user's operation.
Can withstand high-load operations and ensure maximum safety.
The tube body structure can prevent the kinking of the hose.
It is easy to clean and can withstand reverse negative pressure during cleaning.
Product Details
|
规格 Size |
内径 I.D. |
外径 O.D. |
工作压力 W.P. |
爆破压力 B.P. |
最小弯曲半径 min B.R. |
参考重量 W.T |
长度 Length |
| inch | mm | mm | bar | bar | mm | kg/m | m |
| 2" | 51 | 75 | 85 | 200 | 380 | 3.87 | 20 |
| 2-1/2" | 65 | 89 | 85 |
200 |
400 | 4.72 | 20 |
| 3" | 76 | 100 |
85 |
200 |
400 | 5.42 | 20 |
| 3-1/2" | 89 | 114 |
85 |
200 |
500 | 6.89 | 20 |
| 4" | 100 | 128 |
85 |
200 |
550 | 7.66 | 20 |
| 4" | 100 | 124 | 85 | 200 | 550 | 6.87 | 20 |
| 5" | 125 | 150 |
85 |
200 |
700 | 8.69 | 20 |
| 5" | 125 | 153 | 85 | 200 | 700 | 9.44 |
20 |
