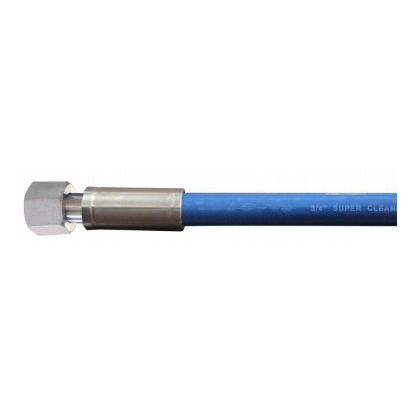

EXTREMELY HIGH PRESSURE THERMOPLAST CLEANING HOSE
Hose Construction
Inner Tube: PA
Reinforcement: 4-8 plies spiral steel wire
Outer Layer: super abrasion resistant polyurethane
Temperature Range:-30c~+80c（-22f+176F）
Application: suitable to transfer water oil and other media under high pressure， widely apply to
the industries like high pressure spraying， high pressure cleaning， engineering machinery，
agricultural machinery， forestry machinery， petrochemical， etc.
Product Details
| 规格型号 | 内径 | 成品最大外径 | 标配连接方式 | 工作压力 | 爆破压力 | 弯曲半径 | 重量 |
| mm | mm | Mpa | Mpa | mm | Kg/m | ||
| 110-3 | 3 | 8.2 | M8 M5 | 110 | 275 | 60 | 0.07 |
| 120-4 | 4 | 10.5 | M8×1.25 | 120 | 300 | 75 | 0.1 |
| 140-4 | 4 | 15.0 | 1/4NPT | 140 | 350 | 55 | 0.16 |
| 150-4 | 4 | 10.5 | M8×1.25 | 150 | 375 | 75 | 0.11 |
| 220-4 | 4 | 15.0 | 3/8LH | 220 | 550 | 100 | 0.21 |
| 280-4 | 4 | 17.0 | 3/8LH | 280 | 700 | 140 | 0.39 |
| 280-5 | 5 | 19.5 | 3/8LH | 280 | 700 | 200 | 0.47 |
| 400-5 | 5 | 19.6 | 3/8LH | 400 | 800 | 200 | 0.66 |
| 110-6 | 6 | 15.0 | M10×1 | 110 | 275 | 110 | 0.20 |
| 164-6 | 6 | 17.5 | M10×1 | 164 | 410 | 155 | 0.33 |
| 90-8 | 8 | 18.0 | 9/16LH | 90 | 225 | 120 | 0.25 |
| 150-8 | 8 | 20.0 | 9/16LH | 150 | 375 | 175 | 0.44 |
| 250-8 | 8 | 23.0 | 9/16LH | 250 | 625 | 200 | 0.83 |
| 280-8 | 8 | 23.0 | 9/16LH | 280 | 700 | 230 | 0.90 |
| 300-8 | 8 | 24.0 | 9/16LH | 300 | 700 | 250 | 1.10 |
| 320-8 | 8 | 24.0 | 9/16LH | 320 | 800 | 280 | 1.10 |
| 160-10 | 10 | 34.0 | M24E0 | 160 | 400 | 95 | 0.94 |
| 110-13 | 13 | 34.0 | M24E0 | 110 | 275 | 100 | 0.80 |
| 140-13 | 13 | 34.0 | M24E0 | 140 | 350 | 110 | 1.19 |
| 180-13 | 13 | 36.5 | M24E0 | 180 | 450 | 290 | 1.36 |
| 200-13 | 13 | 31.5 | M20×1.5LH | 200 | 500 | 300 | 1.85 |
| 250-13 | 13 | 34.5 | M20×1.5LH | 250 | 625 | 350 | 2.50 |
| 300-13 | 13 | 34.2 | M20×1.5LH | 300 | 625 | 350 | 2.50 |
| 140-20 | 20 | 53.5 | M36E0 | 140 | 350 | 350 | 2.10 |
| 160-20 | 20 | 53.5 | M36E0 | 160 | 400 | 350 | 2.28 |
