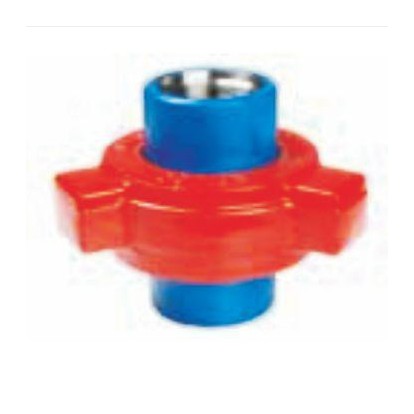

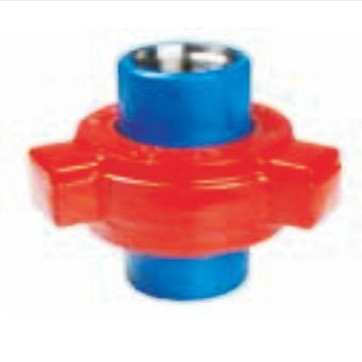

Figure 1002 Threaded 10,000 PSI CWP

Specially Designed Lip Type Elastomer Seal Protects Metal to Metal Sealing Surface and Reduces Line Flow Turbulence

Specifications

Features and Benefits

Applications include oil, gas, air, and water

Unions conform to NACE, ISO, DNV and API standards

Color coded for easy identification

CWP (cold working pressure) is the maximum pressure at 70℉ (+21℃)

Unions are completely interchangeable with competitors of like products

CWP Rating at 70℉ (+21℃)

Figure 100    1000PSI

Figure 200    2000PSI

Figure 206    2000PSI

Figure 400    4000PSI

Figure 602    6000PSI

Figure 1002   10,000PSI

Figure 1502   15,000PSI
