Flexble choke and kill line
Application: flexible connection in the chock and kill manifolds for delivery oil-gas mixture that containing hydrogen sulfide (H2S)and other dangerous gases and various water-based, oil-based and foam killing fluids under high pressure.

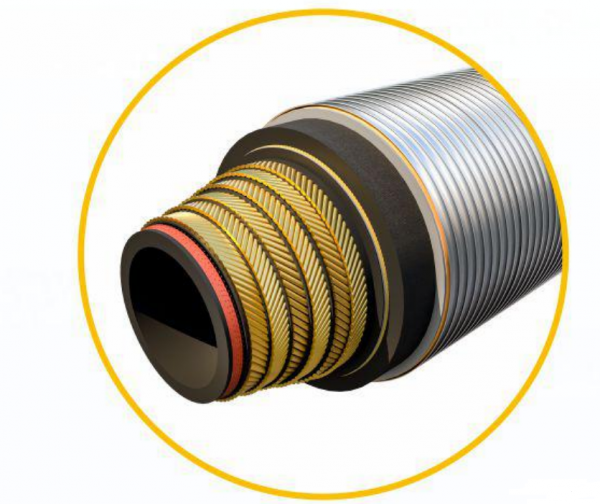

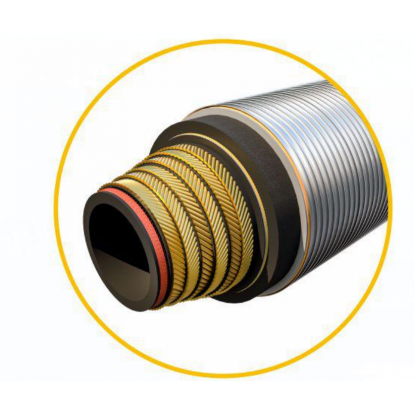

Hose Construction
Inner Tube: HNBR
Bore Type: full flow
Reinforcement: 4-6 layers of high tensile super flexible spiral steel wire or steel cable
Outer Layer: high temperature and fire resistant synthetic rubber(resistant to 704C open fire for 30 minutes)
Protective Layer: stainless steel armor
Temperature Range: -55C~+150C(-67F~+302F)
Connectors: integral union or integral flange
|
压力等级 PRESSURE LEVEL |
内径 I.D. |
外径 O.D. |
工作压力 W.P. |
试验压力 P.P. |
最小爆破压力 Min B.P. |
最小弯曲半径 Min. B.R. |
|
Psi |
in |
mm |
Psi |
Psi |
Psi |
mm |
|
5000 |
2 |
95 |
5000 |
7500 |
11250 |
1000 |
|
3 |
126 |
5000 |
7500 |
11250 |
1200 |
|
|
4 |
163 |
5000 |
7500 |
11250 |
1400 |
|
|
5 |
193 |
5000 |
7500 |
11250 |
1600 |
|
|
7500 |
2 |
97 |
7500 |
11250 |
16875 |
1000 |
|
3 |
132 |
7500 |
11250 |
16875 |
1200 |
|
|
4 |
178 |
7500 |
11250 |
16875 |
1600 |
|
|
5 |
210 |
7500 |
11250 |
16875 |
1800 |
|
|
10000 |
2 |
105 |
10000 |
15000 |
22500 |
1200 |
|
3 |
123 |
10000 |
15000 |
22500 |
1600 |
|
|
3 1/2 |
160 |
10000 |
15000 |
22500 |
1600 |
|
|
5 |
180 |
10000 |
15000 |
22500 |
1800 |
|
|
15000 |
2 |
123 |
15000 |
22500 |
33750 |
1400 |
|
3 |
154 |
15000 |
22500 |
33750 |
1600 |
