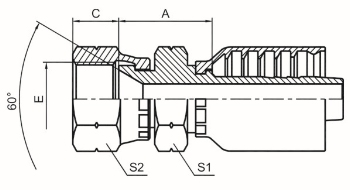

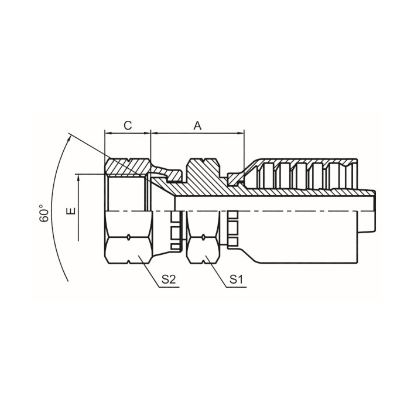

代  号 PART NO.		螺纹E	胶 管 HOSE BORE		尺寸 DIMENSIONS
编织 BRAIDED	缠绕 SPIRAL	THREAD E	公称内径 DN	标号DASH	A	C	S1	S2
29611-04-04RW	--	G1/4”X19	6	04	20.5	8	19	19
29611-04-05RW	--	G1/4”X19	8	05	20.5	8	19	19
29611-06-04RW	--	G3/8”X19	6	04	23.5	9	22	22
29611-06-06RW	--	G3/8”X19	10	06	23	9	22	22
29611-08-06RW	--	G1/2”X14	10	06	24.5	12	27	27
29611-08-08RW	29612-08-08RW	G1/2”X14	12	08	25.5	12	27	27
29611-10-10RW	29612-10-10RW	G5/8”X14	16	10	29.5	11.5	30	30
29611-12-10RW	29612-12-10RW	G3/4”X14	16	10	29.5	13.5	32	32
29611-12-12RW	29612-12-12RW	G3/4”X14	20	12	28.5	13.5	32	32
29611-16-16RW	29612-16-16RW	G1”X14	25	16	33.2	16	41	41
29611-20-20WRW	29612-20-20WRW	G1.1/4”X11	32	20	39.2	18.5	50	50
29611-24-24WRW	29612-24-24WRW	G1.1/2”X11	40	24	41.5	19	55	55
29611-32-32WRW	29612-32-32WRW	G2”X11	50	32	49	23	70	70
