美制ORFS外螺纹平面O形圈密封 ISO 8434-3 SAE J1453

Product Details

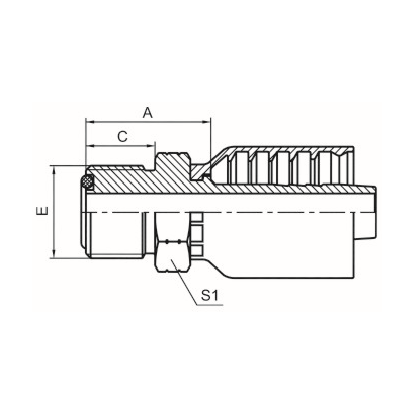

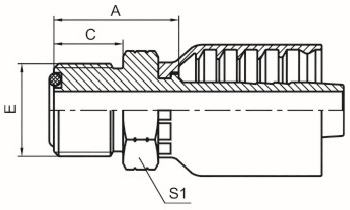

代号	螺纹E	软管		尺寸
代号	螺纹E	公称内径	标号	A	C	S2
26791-04-04	9/16”X18	6	04	25.5	8.5	19
26791-04-05	9/16”X18	8	05	22.5	8.5	19
26791-04-06	9/16”X18	10	06	22.5	8.5	19
26791-06-04T	11/16”X16	6	04	23.5	10	22
26791-06-05T	11/16”X16	8	05	23.5	10	22
26791-06-06	11/16”X16	10	06	26.5	10	22
26791-06-08	11/16”X16	12	08	26	10	22
26791-08-05T	13/16”X16	8	05	25	11	27
26791-08-06T	13/16”X16	10	06	24.5	11	27
26791-08-08	13/16”X16	12	08	28	11	27
26791-08-10	13/16”X16	16	10	29	11	27
26791-10-08T	1”X14	12	08	29	13.5	30
26791-10-10	1”X14	16	10	34	13.5	30
26791-10-12	1”X14	20	12	34	13.5	30
26791-12-08T	1.3/16”X12	12	08	30.5	15	36
26791-12-10T	1.3/16”X12	16	10	32.5	15	36
26791-12-12	1.3/16”X12	20	12	36.5	15	36
26791-12-16	1.3/16”X12	25	16	36	15	36
26791-16-12T	1.7/16”X12	20	12	32.5	14.8	41
26791-16-14T	1.7/16”X12	22	14	35	14.8	41
26791-16-16T	1.7/16”X12	25	16	34.3	14.8	41
26791-16-20	1.7/16”X12	32	20	39.5	14.8	41
26791-20-16T	1.11/16”X12	25	16	34.5	15	50
26791-20-20W	1.11/16”X12	32	20	42.5	15	50
26791-20-24W	1.11/16”X12	40	24	42.5	15	50
26791-24-20T	2”X12	32	20	36	14.8	60
26791-24-24T	2”X12	40	24	37.2	14.8	60
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为24212-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 24212-XX-XX.
