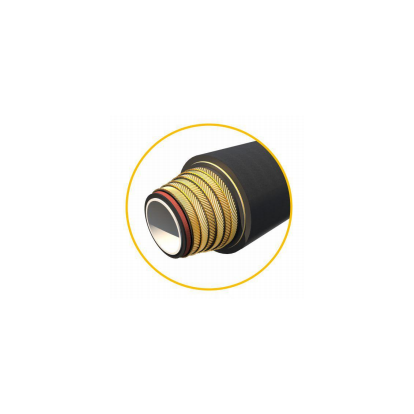

PTFE MULTI-FUNCTION OIL/MUD HOSE
Hose Construction
Inner Tube: PTFE
Reinforcement: Spiralled high tensile texile cords and highly flexible steel helix wire/wires.
Outer Layer: CR
Temperature Range: -30C~+100C(-22F~+212F)
Product Details
| 软管内径 | 软管外径 | 最大工作压力 | 最小弯曲半径 | 重量 | ||
| I.D. | O.D. | Max Rec.WP | Min B.R. | Weight | ||
| in | mm | in | mm | psi | mm | kg/m |
| 2 | 51 | 2.4 | 65 | 350 | 381 | 1.25 |
| 2 1/2 | 63 | 2.95 | 75 | 350 | 508 | 1.79 |
| 3 | 76 | 3.46 | 88 | 350 | 508 | 2.14 |
| 3 1/2 | 90 | 4.02 | 102 | 350 | 635 | 2.71 |
| 4 | 102 | 4.49 | 114 | 350 | 762 | 3.02 |
| 5 | 127 | 5.55 | 141 | 350 | 889 | 4.73 |
| 6 | 152 | 6.54 | 166 | 350 | 1270 | 5.97 |
