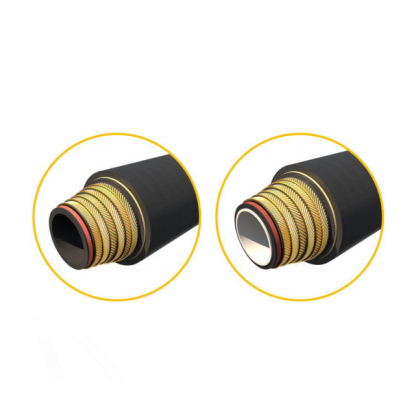

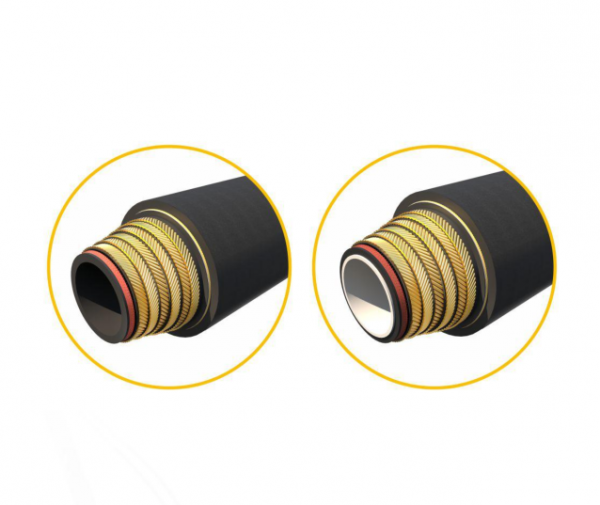

Rotary drilling and vibrator hose

Application: flexible connection between the upper end of the standpipe and the top drive/swivel and between the pump and the lower end of the standpipe for pumping mud at high pressure in oil drilling and exploration work.

Inquire Now

Product Details

Hose Construction
Inner Tube: NR& SBR sythentic rubber/HNBR/UPE
Tube Type: full flow
Reinforcement: 2-6 layers of high tensile super flexible spiral steel wire or steel cable
Outer Layer: abrasion and weather resistant synthetic rubber
Temperature Range:
-20℃~+82℃(-4℉~+179.6°F)
-55℃~+150℃(-67℉~+302℉)
Connectors: integral union or integral flange

压力等级 PRESSURE LEVEL Psi	内径 I.D. in	内径 I.D. in	工作压力 W.P. Psi	试验压力 P.P. Psi	最小爆破压力 Min.B.P. Psi	最小弯曲半径 Min.B.R. mm
1500 A级Grade A	2	68	1500	2250	3750	800
1500 A级Grade A	2 1/2	84	1500	2250	3750	800
2000 B级Grade B	2	68	2000	3000	5000	800
	2 1/2	84	2000	3000	5000	800
	3	97	2000	3000	5000	950
	3 1/2	113	2000	3000	5000	1000
	4	127	2000	3000	5000	1000
	5	157	2000	3000	5000	1200
	6	183	2000	3000	5000	1300
4000 C级Grade C	2	72	4000	6000	10000	800
	2 1/2	87	4000	6000	10000	800
	3	102	4000	6000	10000	1000
	3 1/2	119	4000	6000	10000	1200
	4	132	4000	6000	10000	1200
	5	162	4000	6000	10000	1400
	6	194	4000	6000	10000	1500
5000 D级Grade D	2	75	5000	7500	12500	800
	2 1/2	90	5000	7500	12500	800
	3	104	5000	7500	12500	1000
	3 1/2	121	5000	7500	12500	1200
	4	134	5000	7500	12500	1200
	5	164	5000	7500	12500	1400
	6	196	5000	7500	12500	1600
7500 E级Grade E	2	77	7500	11250	18750	900
	2 1/2	94	7500	11250	18750	1000
	3	110	7500	11250	18750	1000
	3 1/2	128	7500	11250	18750	1200
	4	150	7500	11250	18750	1400
	5	185	7500	11250	18750	1600
	6	212	7500	11250	18750	1600
