SAE 法兰 3000PSI ISO 12151-3-SAE J516

Product Details

代号	法兰型号	软管		尺寸

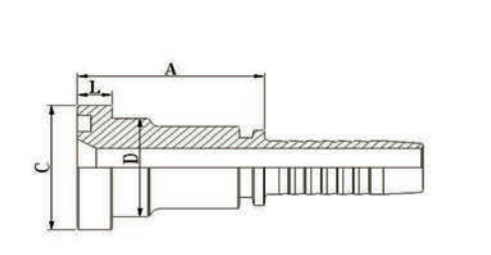

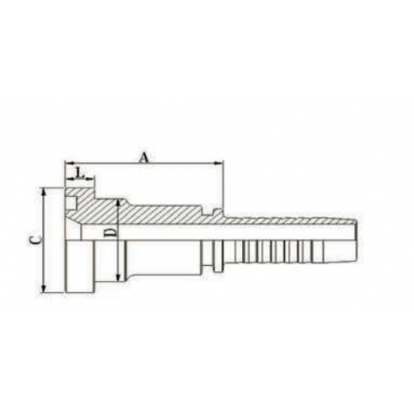

代号	法兰型号	公称内径	标号	A	C	D	L
97312-08-08	1/2”	12	08	45.5	30.2	24	6.73
97312-12-08	3/4”	12	08	47.5	38.1	31.7	6.73
97312-12-10	3/4”	16	10	49	38.1	31.7	6.73
97312-12-12	3/4”	20	12	48.5	38.1	31.7	6.73
97312-12-16	3/4”	25	16	49	38.1	31.7	6.73
97312-16-12	1”	20	12	51	44.4	38	8
97312-16-16	1”	25	16	48	44.4	38	8
97312-16-20	1”	32	20	53	44.4	38	8
97312-20-16	1.1/4”	25	16	57	50.8	43	8
97312-20-20	1.1/4”	32	20	56	50.8	43	8
97312-24-20	1.1/2”	32	20	68	60.3	50	8
97312-24-24	1.1/2”	40	24	74	60.3	50	8
97312-32-24	2”	40	24	70	71.4	62	9.53
97312-32-32	2”	50	32	70	71.4	62	9.53
97312-40-40	2.1/2”	64	40	76	84.1	74	9.53
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为87312-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87312-XX-XX.
