SAE 法兰 6000PSI ISO 12151-3-SAE J516

Product Details

代号	法兰型号	软管		尺寸

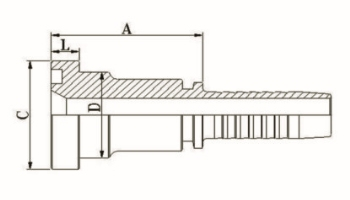

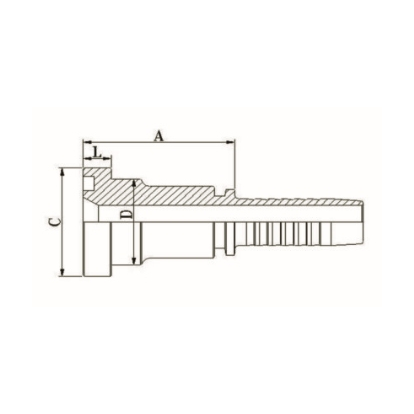

代号	法兰型号	公称内径	标号	A	C	D	L
87612-08-08	1/2”	12	08	47.5	31.7	24	7.75
87612-12-10	3/4”	16	10	50.5	41.3	32	8.76
87612-12-12	3/4”	20	12	51.5	41.3	32	8.76
87612-16-12	1”	20	12	56	47.6	38	9.53
87612-16-16	1”	25	16	52.5	47.6	38	9.53
87612-16-20	1”	32	20	61	47.6	38	9.53
87612-20-16	1.1/4”	25	16	65	54	44	10.29
87612-20-20	1.1/4”	32	20	62	54	44	10.29
87612-24-20	1.1/2”	32	20	75	63.5	51	12.57
87612-24-24	1.1/2”	40	24	79	63.5	51	12.57
87612-32-24	2”	40	24	85	79.4	67	12.57
87612-32-32	2”	50	32	79	79.4	67	12.57
注：1.上诉代号用于编制软管。 2.如需用于缠绕软管代码号改为87612-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87612-XX-XX.
